Sic Black Silicon Carbide Abrasive

Black silicon carbide is produced by a reduction fusion of high quality bauxites in electric arc furnaces. It is both a hard and tough material with high strength, making it an excellent abrasive grain for applications.Its thermal properties make it an excellent raw material for refractory applications.

Easy ways to get the answers you need.Send Email

xlabrasivematerial@gmail.com


Get Price
Properties Advantages Application Related Products Inquiry

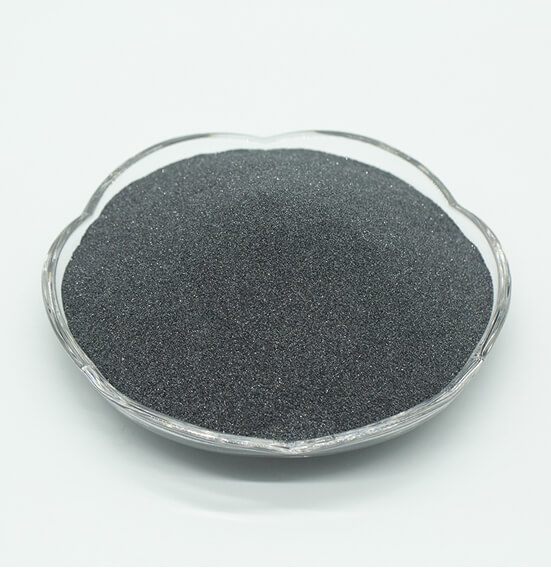

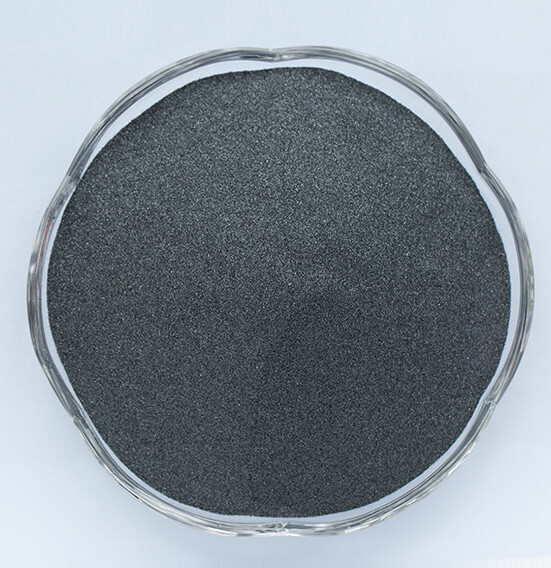

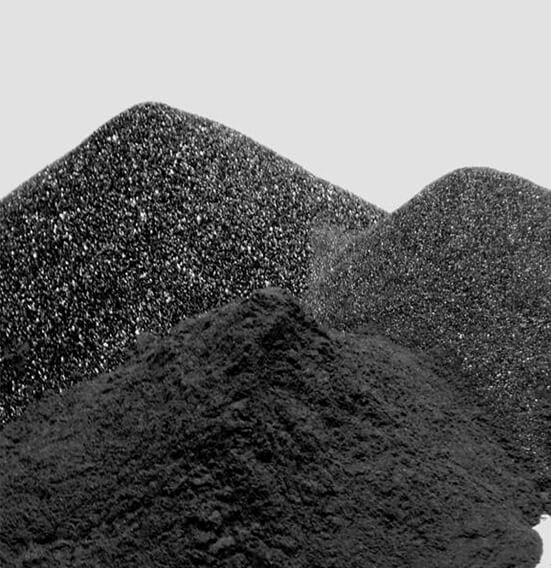

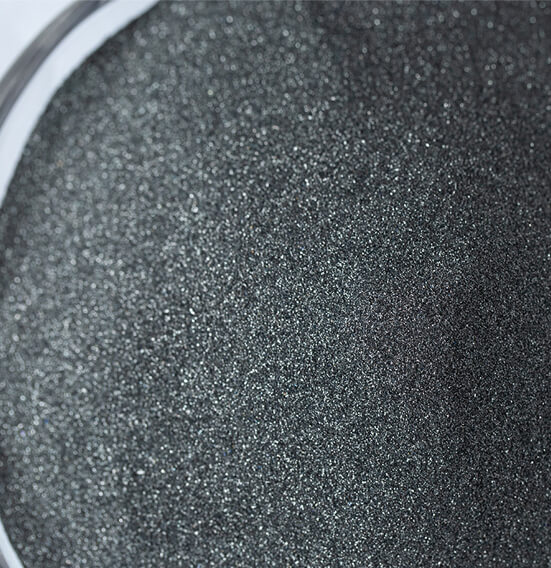

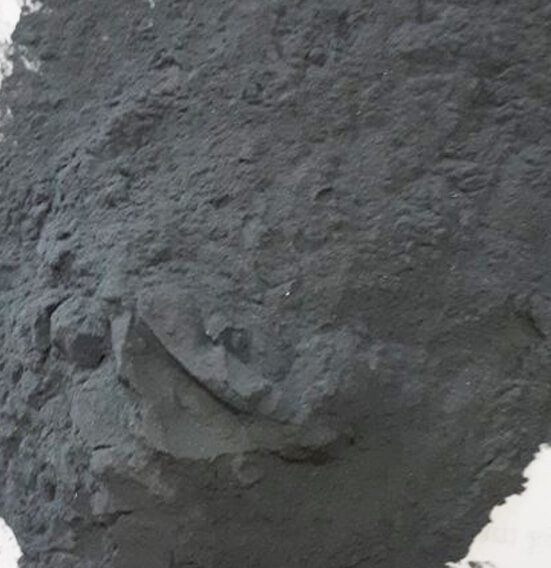

Black Silicon Carbide

Because of the rarity of natural moissanite, most silicon carbide is synthetic. It is used as an abrasive, and more recently as a semiconductor and diamond simulant of gem quality. The simplest manufacturing process is to combine silica sand and carbon in an Acheson graphite electric resistance furnace at a high temperature, between 1,600 °C (2,910 °F) and 2,500 °C (4,530 °F). Fine SiO2 particles in plant material (e.g. rice husks) can be converted to SiC by heating in the excess carbon from the organic material. The silica fume, which is a byproduct of producing silicon metal and ferrosilicon alloys, also can be converted to SiC by heating with graphite at 1,500 °C (2,730 °F).

Properties

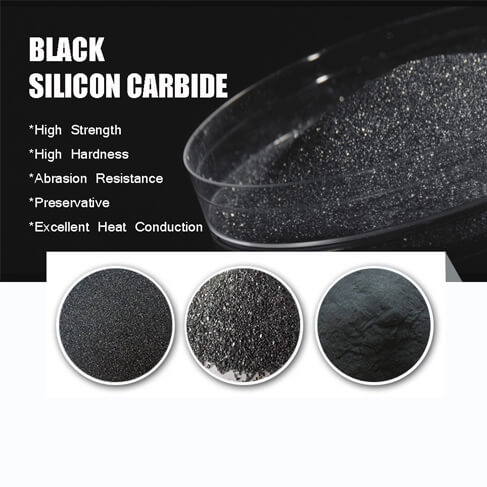

High strength, high hardness, abrasion resistance, preservative, excellent heat conduction.

  • SiC Content:
  • 98%min
  • Maximum service temperature:
  • 1900℃
  • Mohs Hardness:
  • 9.5
  • Specific Gravity:
  • 3.2-3.4g/cm3 min
  • Melting Point:
  • 2250℃

Advantages

  • Good oxidation resistance and chemical stability at high temperatures.
  • High hardness with Mohs 9.2-9.5. Even at 2000℃, it’s still get high strength.
  • Low thermal conductivity. So it can resistant to themal shock.
  • High purity min SiC content is 98.5%.
  • Black silicon carbide grit is washed by water before milling process, so there is few impurities.

Application

  • 01

    As an abrasive, it can be used as a grinding tool, such as grinding wheel,oilstone,grinding head, sand tile, etc.

  • 02

    As a metallurgical deoxidizer andexotic material.

  • 03

    High-purity single crystal, which can be used for manufacturing semiconductors and manufacturingsilicon carbide fiber.

  • 04

    It can be used as deoxidizer for steelmaking and modifier for cast iron structure, and as raw material for manufacturing silicon tetrachloride.

  • 05

    It can be used as high temperature indirect heating material.

  • 06

    Anti-wear lubricants, structural coatings, functional coatings, protective coatings, absorbing materials, stealth materials, etc. in the industrial field

  • 07

    Glass polishing, rubber tires and other rubber products, high-performance brake pads, product anti-wear lubrication, high-hardness wear-resistant powder coatings.

  • 08

    High-performance structural ceramics (such as rocket nozzles, nuclear industry, etc.), which can be used as ceramic knives, cutting tools, measuring tools, molds; special-purpose structural ceramics, functional ceramics, composite ceramics, engineering ceramics.

Specifications

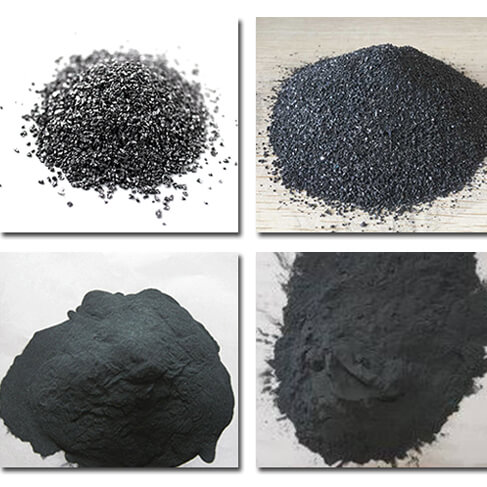

Fraction 0-1mm 1-3mm 3-5mm 5-8mm
Fine F500, F2500, -100mesh -200mesh -320mesh

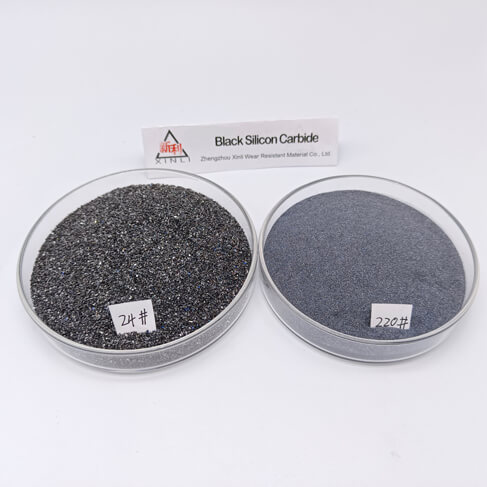

Grains 8# 10# 12# 14# 16#20# 22# 24# 30# 36# 46# 54# 60# 80# 100# 120# 150# 180# 220#

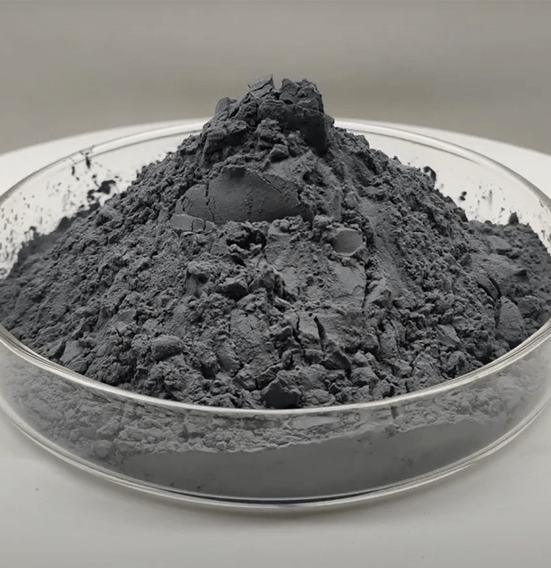

Micro powder(Standard) W63 W50 W40 W28 W20 W14 W10 W7 W5 W3.5 W2.5
JIS 240# 280# 320# 360# 400# 500# 600# 700# 800# 1000# 1200# 1500# 2000# 2500# 3000# 4000# 6000#
FEPA F230 F240 F280 F320 F360 F400 F500 F600 F800 F1000 F1200 F1500

Chemical Composition (%)

Grit Sic F.C. Fe2O3
F12-F90 ≥98.50 <0.20 ≤0.60
F100-F150 ≥98.00 <0.30 ≤0.80
F180-F220 ≥97.00 <0.30 ≤1.20
F230-F400 ≥96.00 <0.40 ≤1.20
F500-F800 ≥95.00 <0.40 ≤1.20
F1000-F1200 ≥93.00 <0.50 ≤1.20
P12-P90 ≥98.50 <0.20 ≤0.60
P100-P150 ≥98.00 <0.30 ≤0.80
P180-P220 ≥97.00 <0.30 ≤1.20
P230-P500 ≥96.00 <0.40 ≤1.20
P600-P1500 ≥95.00 <0.40 ≤1.20
P2000-P2500 ≥93.00 <0.50 ≤1.20
